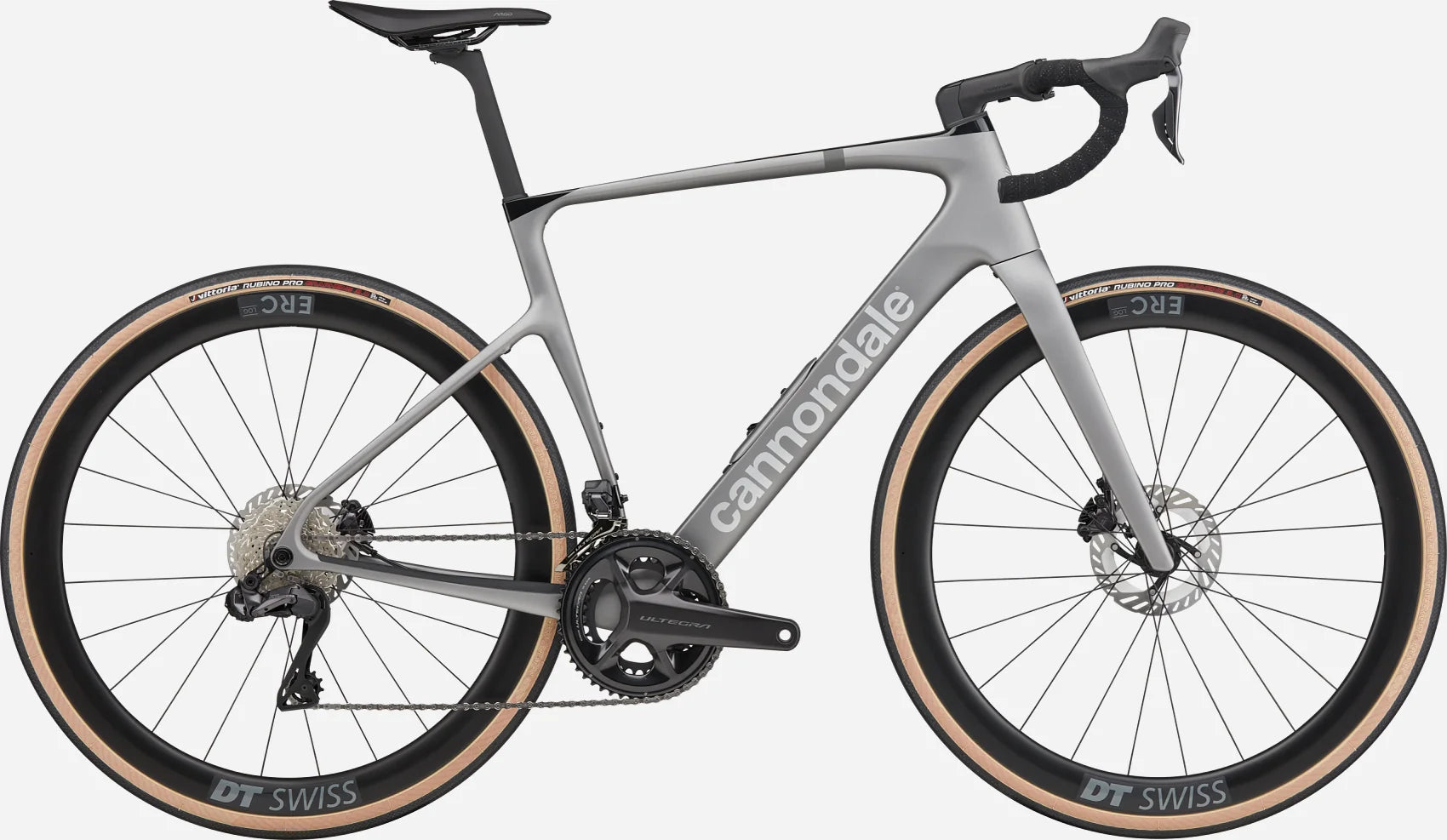

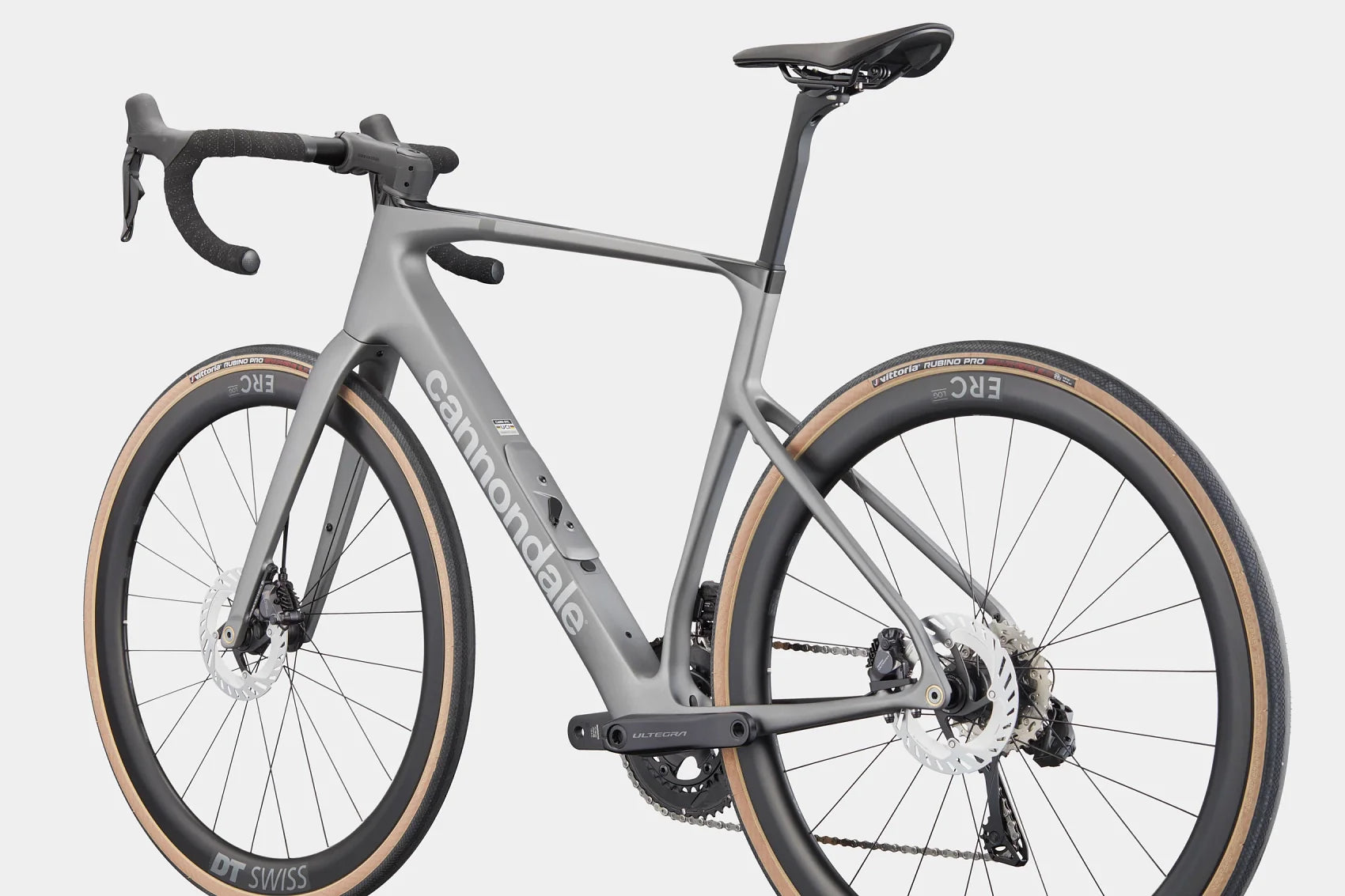

Synapse Carbon 2

Details

• Platform

  Synapse Carbon
• Model Name

  Synapse Carbon 2
• Model Code

  C12205U

Frameset

• Frame

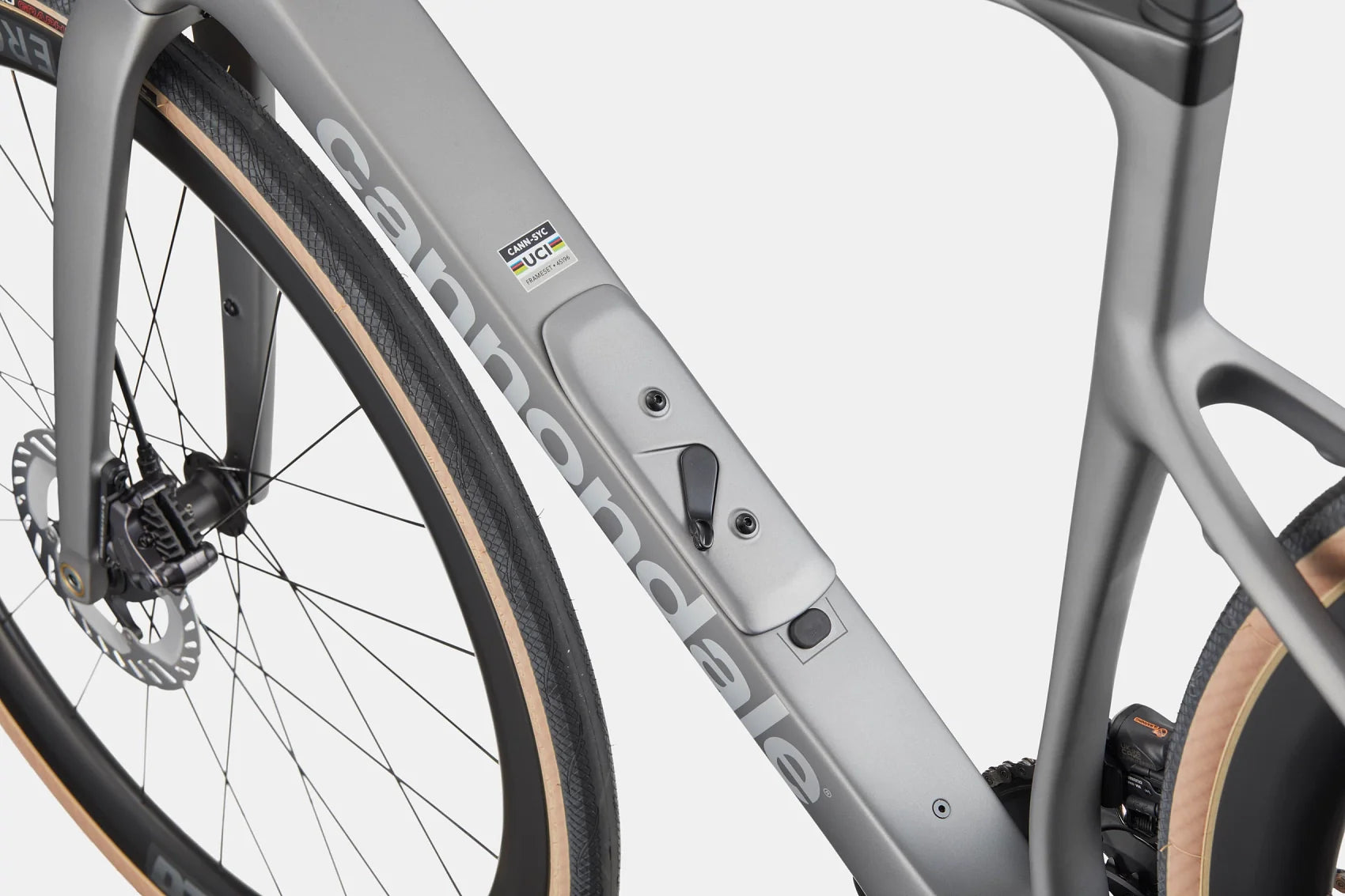

  Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
• Fork

  Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
• Headset

  Integrated, 1-1/8" - 1-1/2"

Drivetrain

• Rear Derailleur

  Shimano Ultegra Di2 R8150
• Front Derailleur

  Shimano Ultegra Di2 R8150
• Shifters

  Shimano Ultegra Di2 R8170, wireless, 12-speed
• Chain

  Shimano Ultegra, 12-speed
• Crank

  Shimano Ultegra R8100, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
• Rear Cogs

  Shimano Ultegra R8100, 11-34, 12-speed
• Bottom Bracket

  Shimano BSA 68

Brakes

• Brakes

  Shimano Ultegra R8170, 160/160mm CL800 rotors
• Brake Levers

  Shimano Ultegra Di2 R8170 hydraulic disc

Wheels

• Rims

  DT Swiss ERC 45, carbon, 24mm inner width, 45mm depth, 24h, tubeless ready
• Spokes

  DT Swiss Competition
• Tire Size

  32
• Wheel Size

  700
• Hubs

  (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
• Tires

  Vittoria Rubino Pro IV, 700x32c

Components

• Handlebar

  Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
• Grips

  Fizik Tempo Bondcush Soft, 3mm
• Saddle

  Fizik Vento Argo X5, 140mm
• Seatpost

  Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)

Extra

• Extra 1

  Large StashBag downtube storage bag, tubeless valves
