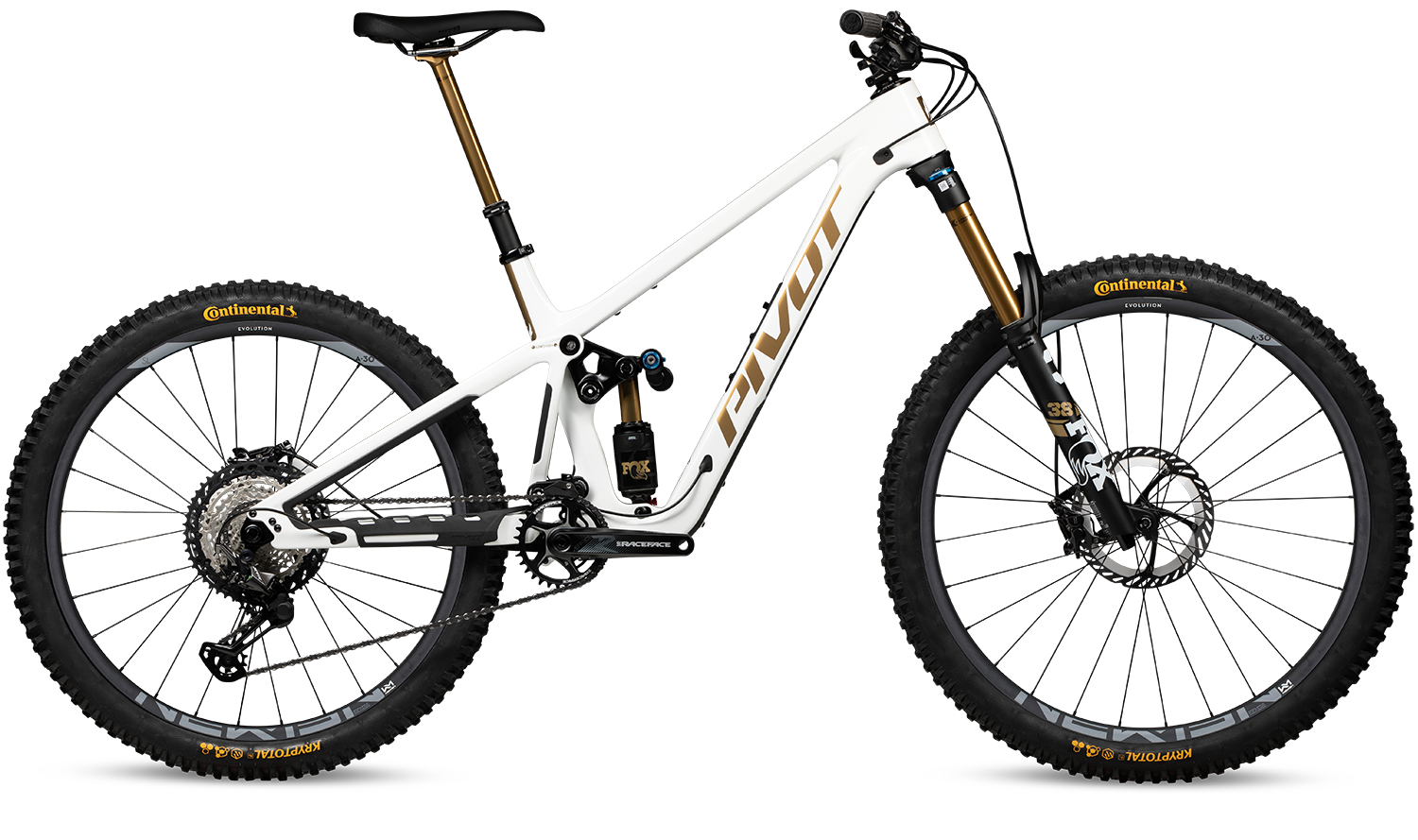

Firebird V5, White/Gold, MD, Pro XT 29''

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon fiber front and rear triangles, size-specific Proprietary Ride Tuning carbon layups and stiffness; molded seatstay, chainstay, lower down tube, and shuttle guard protection

Rear Travel

165mm

Rear Shock

FOX FLOAT X2 Factory, Kashima coating, trunnion mount, 205mm length x 65mm stroke

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, Kashima coating, 44mm offset

Fork Travel

170mm

Head Tube Diameter

Straight, 1.5"

Headset

Pivot Precision, sealed cartridge bearings, ZS56 upper/lower

Handlebar

Phoenix Team Carbon
XS: 760mm width, 20mm rise; SM: 780mm width, 20mm rise; MD-XL: 780mm width, 35mm rise

Stem

Phoenix Team Enduro V2, 7° rise
Length: 32mm (XS), 40mm (SM-LG), 50mm (XL)

Grips

Phoenix Factory, lock-on

Brakes

Shimano Deore XT M8120, 4-piston, Shimano Deore XT 203mm CENTER LOCK rotors

Brake Levers

Shimano Deore XT M8100

Drivetrain

1x

Shifters

Shimano Deore XT M8100, 12-speed, I-SPEC EV mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano XTR M9100, 12-speed, SGS cage

ISCG Tabs

ISCG05

Chainguide

Upper slider

Cranks

Race Face Aeffect R Alloy, 170mm length

Chainrings

Race Face Aeffect R, 32 tooth

Bottom Bracket

92mm press-fit

Pedals

None

Chain

Shimano Deore XT M8100, 12-speed

Cassette

Shimano Deore XT M8100, 12-speed, 10-51 tooth

Rims

DT Swiss XM 1700 Alloy, 30mm width
Option: Reynolds Blacklabel Enduro Pro Carbon, 32mm width

Hubs

DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with 36 tooth Star Ratchet freehub and MICRO SPLINE driver
Option (with Reynolds Blacklabel Enduro Pro Carbon rims): Industry Nine

Spokes

DT Swiss wheelset

Tires

Front: Continental Kyrptotal-F, Soft compound, Enduro casing, 29" x 2.4"
Rear: Continental Kyrptotal-R, Soft compound, Enduro casing, 2.4"

Saddle

XS/SM: WTB High Tail Trail Pro Phoenix
MD-XL: WTB Volt Pro Phoenix, medium width

Seatpost

FOX Transfer Factory dropper, adjustable travel, Kashima coating
Drop: 125-150mm (XS), 155-180mm (SM), 185-210mm (MD/LG), 215-240mm (XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

2.6"

Bottle Cage Mounts

One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System

Colors

White Gold, YOLO, Purple Galaxy

Warranty

10 years frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings

Weight

Miscellaneous

• dw-link rear suspension design
• Sizes SM-XL available with 29" wheels front/rear or mixed ("Mullet") setups (29" front, 27.5" rear); size XS available in mixed ("Mullet") setup only
• Geometry adjustable via two-position flip chip in upper linkage
• Chainstay length (and resulting wheelbase) adjustable via two-position Swinger Dropout System
• Rear suspension progressivity adjustable via two-position (progressive/linear) flip chip at lower shock mount
• Toolshed in-frame storage system in down tube; includes two custom storage bags
• Cable Port System internal cable routing, with integrated cable clips inside Toolshed hatch
• SRAM UDH (Universal Derailleur Hanger)
• Compatible with aftermarket reach and angle adjust headsets
• Frame weight: 6.18 lbs (2.8 kg)
