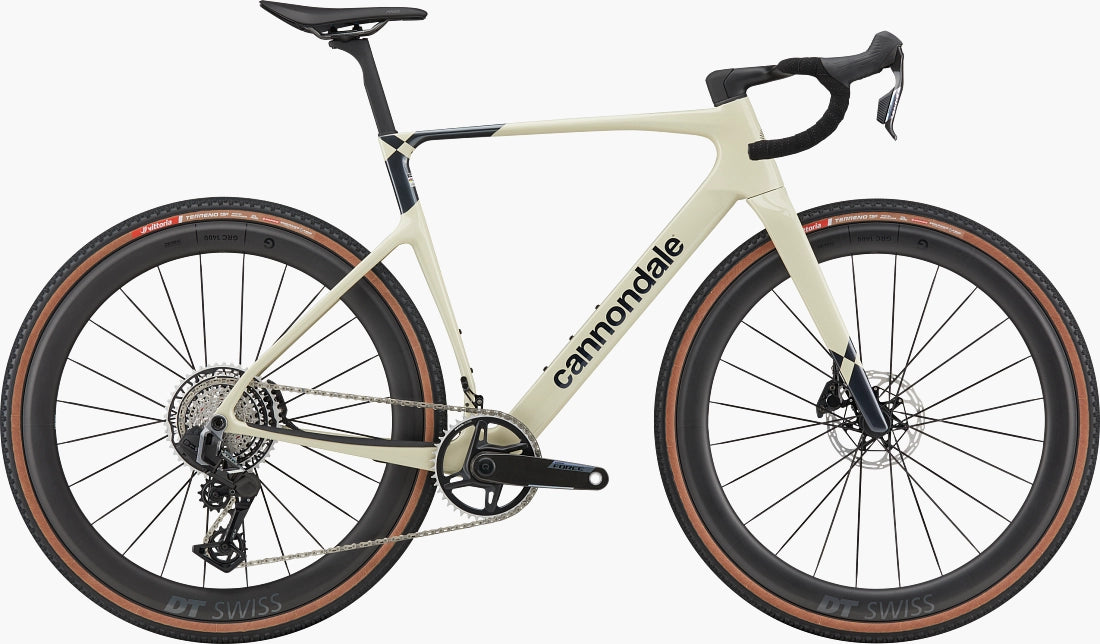

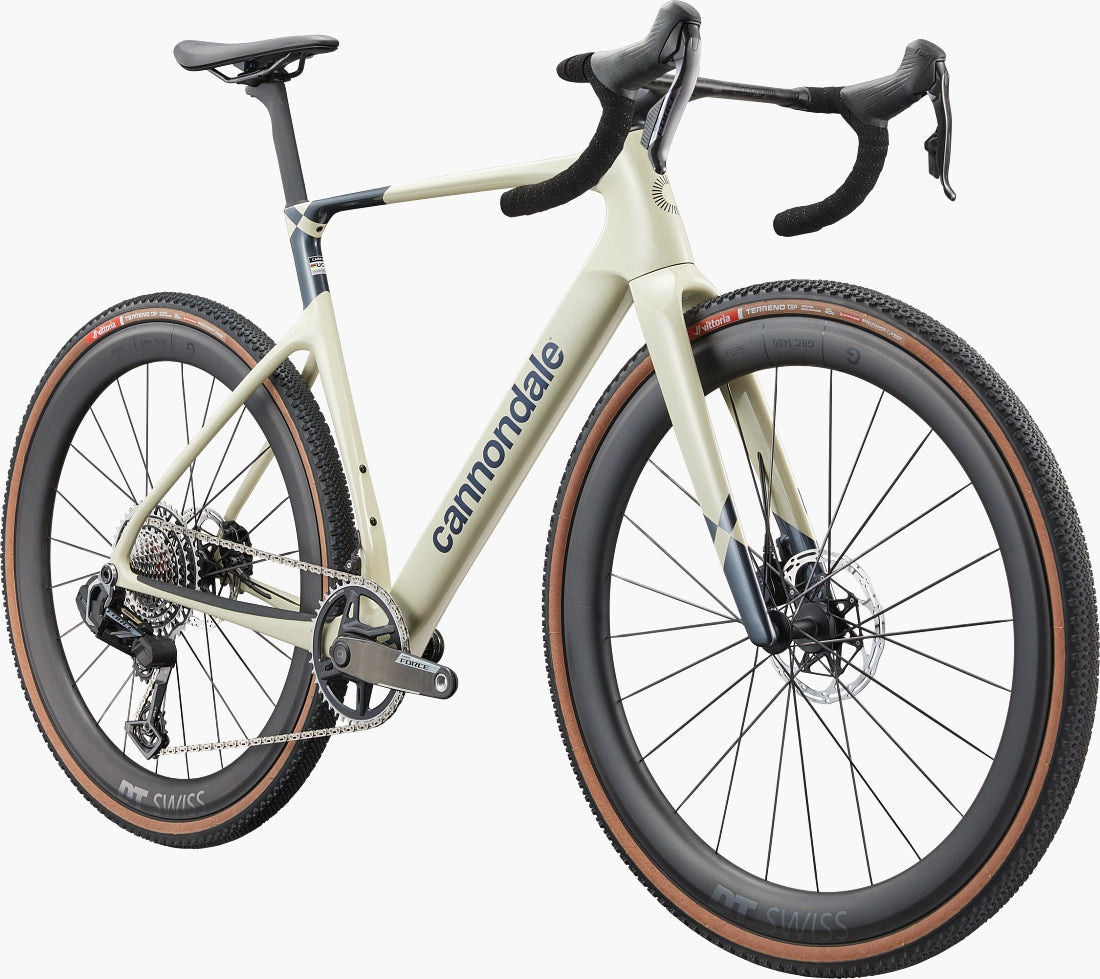

SuperX 1

Details

• Platform

  SuperX
• Model Name

  SuperX 1
• Model Code

  C1703GU

Frameset

• Frame

  SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
• Fork

  SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
• Headset

  Integrated, 1-1/8" - 1.5"

Drivetrain

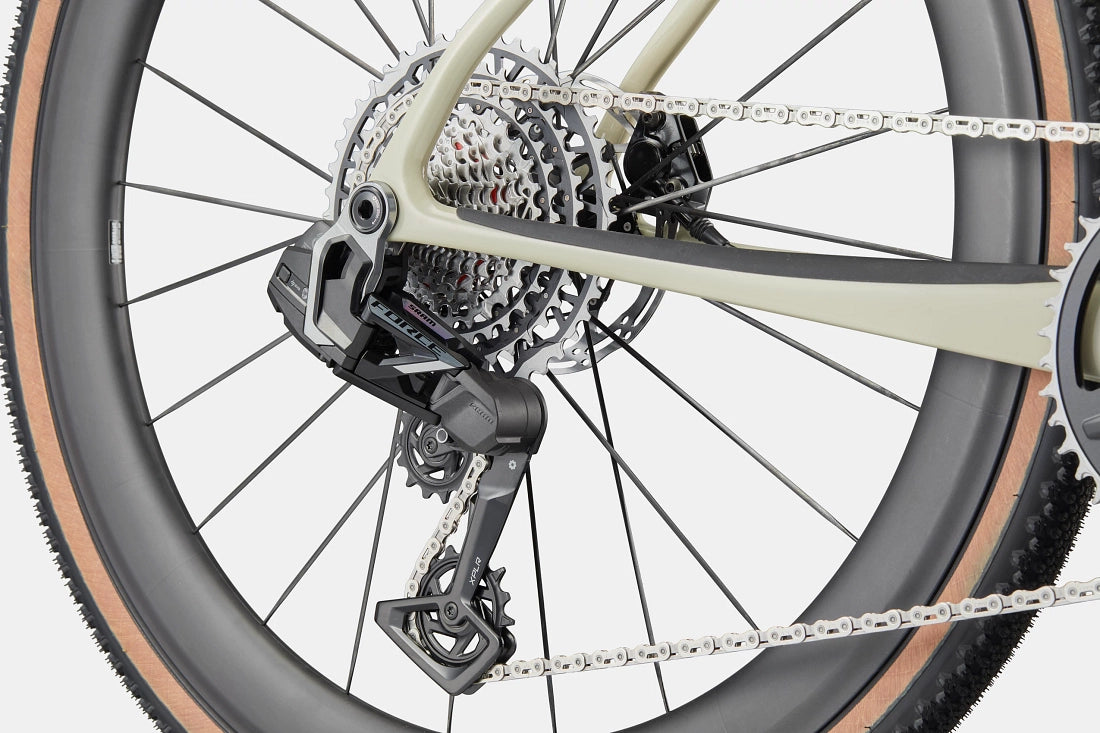

• Rear Derailleur

  SRAM Force XPLR AXS, 13-speed
• Shifters

  SRAM Force AXS, 13-speed
• Chain

  SRAM Force 13-speed

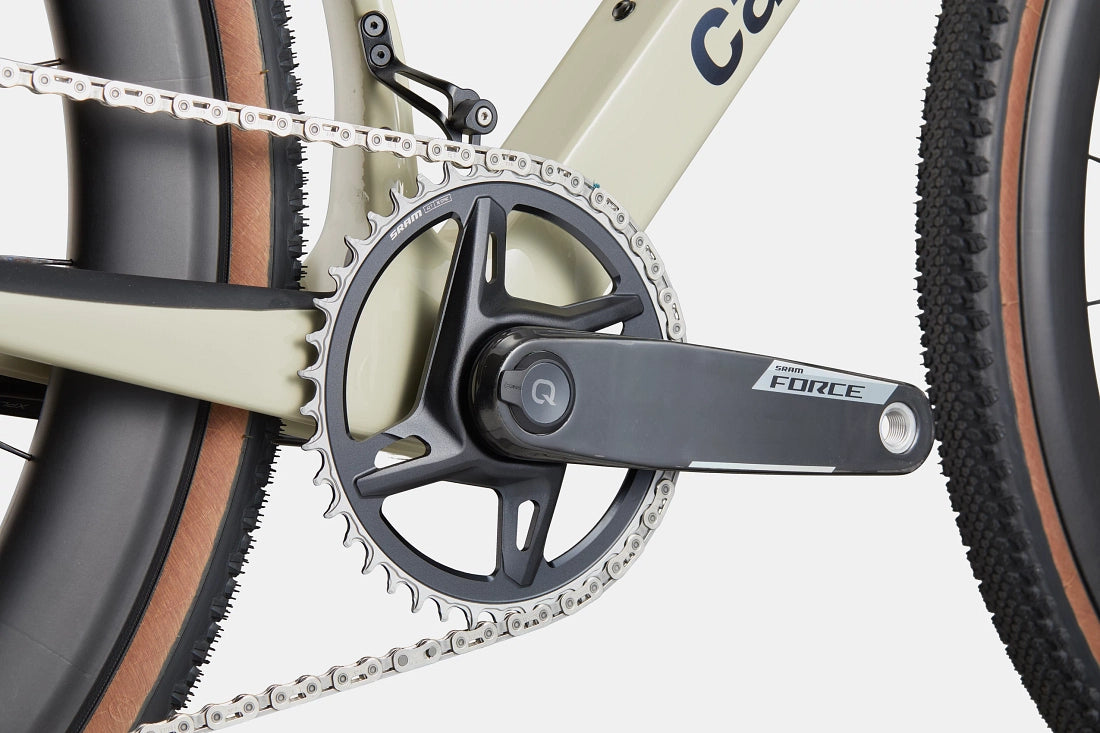

• Crank

  SRAM Force XPLR AXS Wide Power Meter, 42T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm)
• Rear Cogs

  SRAM Force XPLR XG-1371, 10-46, 13-speed
• Bottom Bracket

  SRAM DUB BSA Road 68 Wide

Brakes

• Brakes

  SRAM Force AXS hydraulic disc, Centerline X 160/160mm centerlock rotors
• Brake Levers

  SRAM Force AXS hydraulic disc

Wheels

• Rims

  DT Swiss GRC 1400 DICUT, carbon, 24mm inner width, 50mm depth, 24h, tubeless ready
• Spokes

  DT Swiss Aero Comp
• Tire Size

  40
• Wheel Size

  700c
• Hubs

  DT Swiss 240, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
• Tires

  Vittoria Terreno T50, 700x40c, tubeless ready

Components

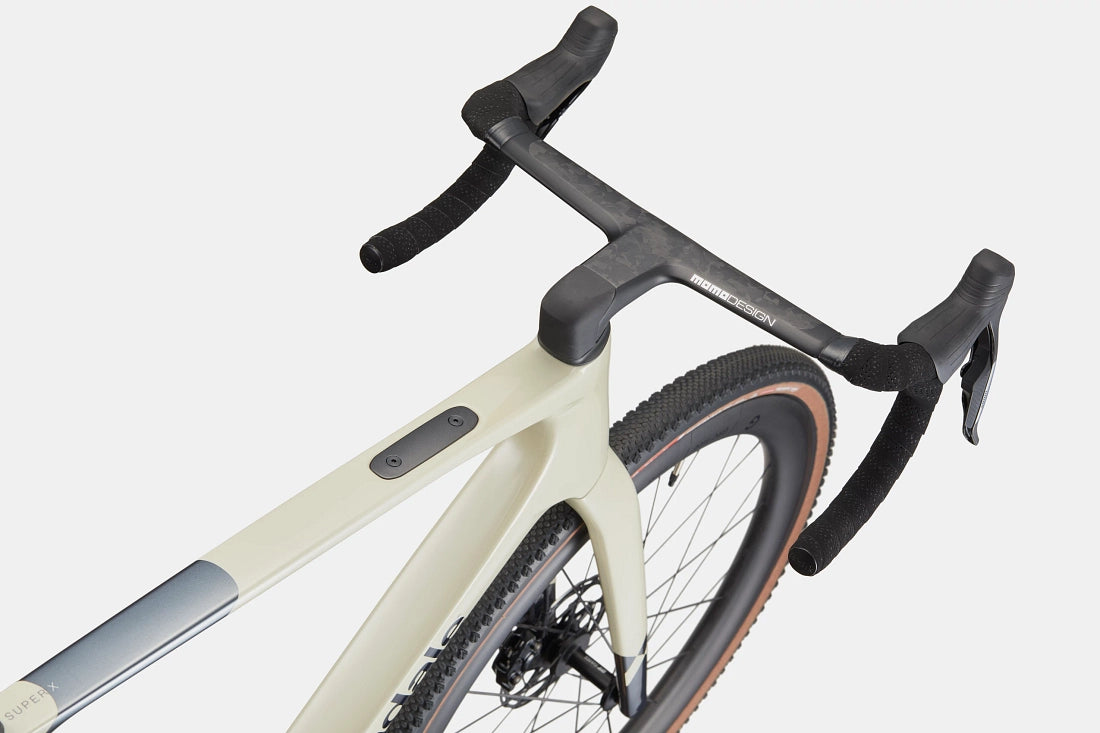

• Handlebar

  Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x380mm (46-51cm), 100x400mm (54-56cm), 110x400mm (58cm), 110x420mm (61cm)
• Stem

  Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Fizik Vento Argo X3, Kium rails, 140mm
• Seatpost

  Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

• Extra 1

  Tubeless valves, SRAM AXS charger, SystemBar R-One Garmin/Wahoo/Hammerhead computer mount
